Outlaw Pistol
To keep the price low, I used the Crosman grip. The
pistol is constructed to be a pre-charge pistol and is not a conversion of any
other pistol.
.25 cal. has a 14" barrel, is capable of shooting a 27gr.
pellet at 1000fps. for 3 shots. In order to get more shots per fill, I'm
tuning the gun to approximately 900fps. A 27gr. pellet at 850fps is more
powerful than the .25 cal. spring rifles currently on the market.
Performance with 27 gr. rampoint pellets:
#777 has a 10" reservoir tube; #785 has a 12" tube; both
have 14" long barrels.
Pistol
#777 Pistol #785
938 f.p.s.
890 f.p.s.
951
940
924
936
930
954
889
906
893
.308 cal. has a 14" barrel, can be used with pistol grips
or the carbine butt stock. The pistols can be tuned for more power or less
power than shown here.
Pistol #960 115gr. #960
76gr. Pistol #961 115gr. #961
76gr.
658 f.p.s.
774 f.p.s.
612
707
643
746
581
694
611
716
577
667
500
694
548
639

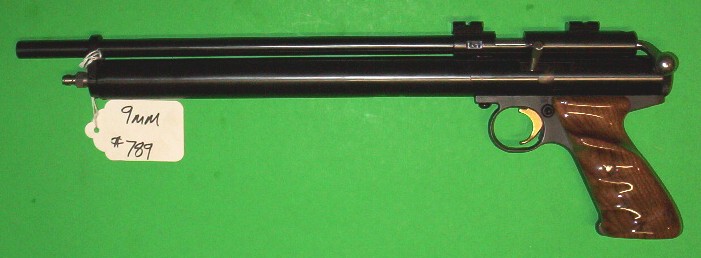

9mm has a 14" barrel and I've tuned this pistol for 3 shots
that are consistently at the 600-575 fps level, with a 125gr. bullet. After the
3 shots there's still more left in the gun, but the velocity is going to drop
and those shots will start to hit lower and lower.
Performance with 125 gr. lead bullet:
Both pistols have 12" barrels and 10" reservoir tubes.
The test was done with 12" barrels, I'm now using 14" barrels, which would be a
little more powerful than these.
Pistol
#608 Pistol
#641
594
fps
615 fps
604
604
575
577
544
537
This is the performance of the guns as they were first tested. As the
parts wear in the velocity will increase some and will have less variance.
Although there is more air left after the fourth shot, the velocity drop makes
the pistol not usable for hunting. So at that stage, just top the gun back
off and stay in that power range.

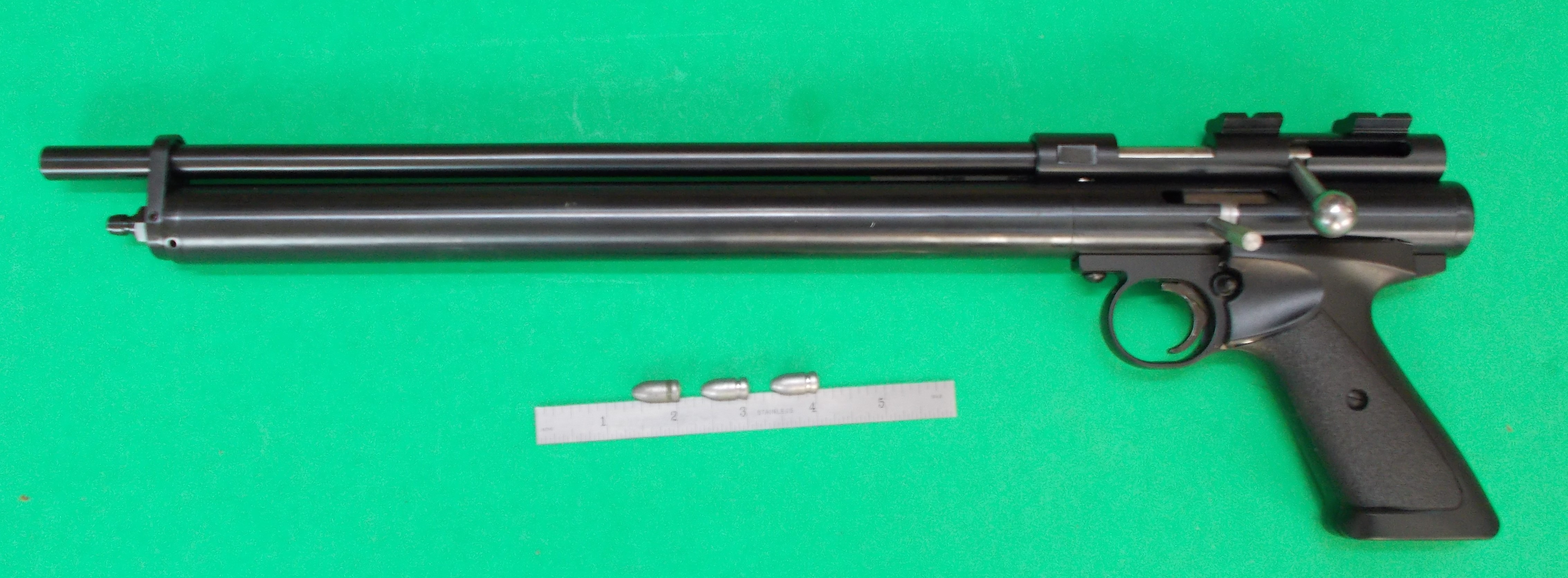

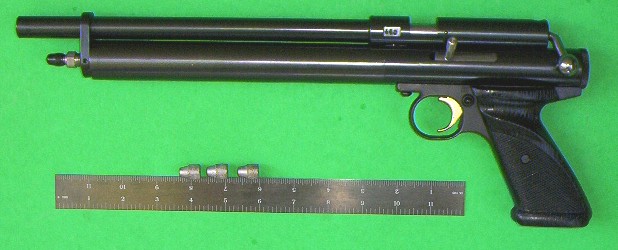

.45 cal. (.452) has a 12" barrel and is intended to be used with
the cast lead .45ACP bullets. 17 1/2" overall. The grip
frame looks familiar because it's a Crosman 2240 grip frame. Everything
above the grip is new made for a pre-charge pistol. I intended this pistol
to be a can blaster. It will shoot a 200gr., 45 cal. lead semi-wadcutter
bullet at going on 600fps for the first shot to 550fps for the third shot.
That's 160 & 140fpe, respectively.

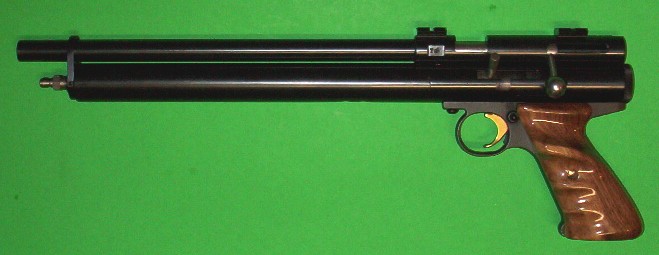

.451 with walnut grips; grips available separately from RB grips
Shown with Crosman 1399 butt stock, making it a stocked
pistol. Stock available separately from Crosman.
Here's a link to
someone who sells the stocks on Ebay:
